Instructions and Information on Suspension
Parts
| |

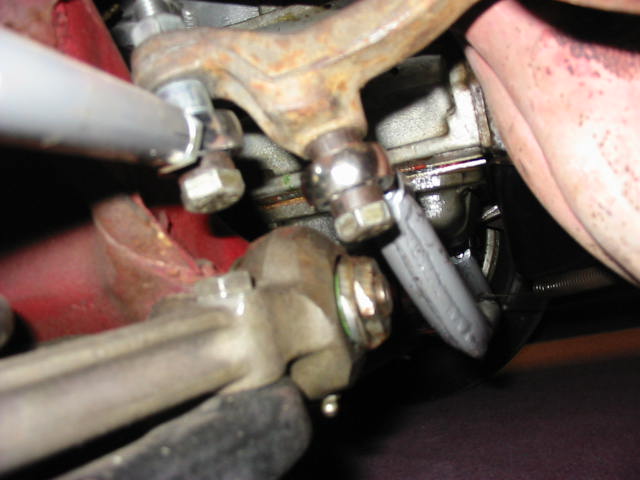

Lowered track rod installed. It clears the GTA oil pan and allows
the engine and GB to be removes and installed without having to
disconnect the track rod. The bend is reinforced with a 1/8" plate
embedded in the bend." |
|
| |

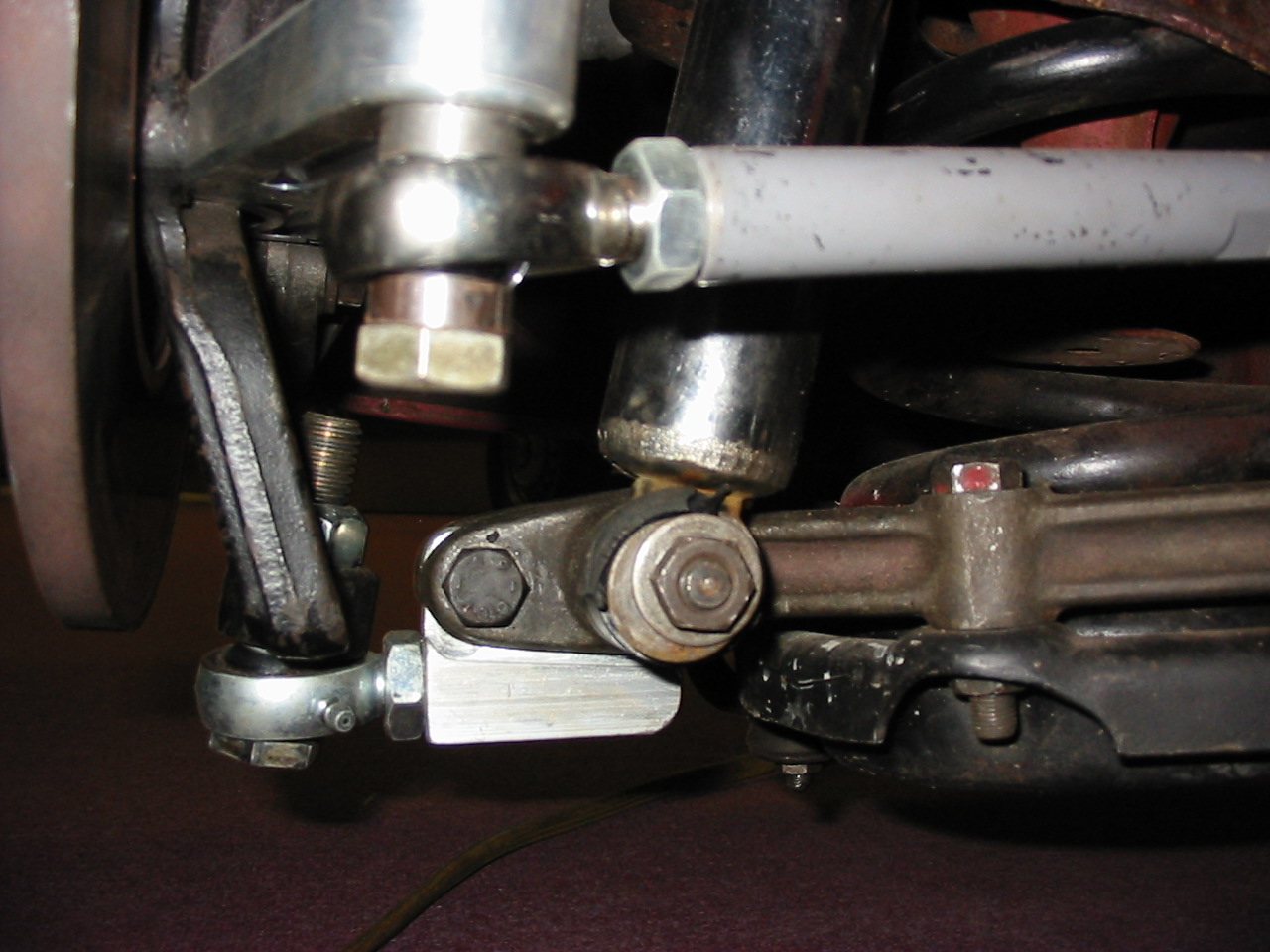

STEERING/ SUSPENSION ULTIMATE BUMP STEER KIT. The spherical lower
ball joint raises the spindle and lowers the car 1.2". The longer
steering knuckle increases the angle of the upper arm and takes the
place of the old Autodelta knuckle riser. This geometry change
creates camber gain needed to counter the roll in turns. The
aluminum close ratio steering arm quickens the steering input. When
installed together with the furnished spacers, the bump steer is
within a minimal range. Further fine tuning can be accomplished
adding or subtracting spacers. |
|
| |

ALUMINUM CR STEERING ARM is 1/2" shorter than standard and
eliminated one pound of unsprung weight. For race applications
only. Can be used with steering that has been converted to 1/2"
rod ends. Can be drilled out for systems converted to 5/8" rod
ends. Adding this arm to your existing steering set up will screw
up the bump steer. You will have to check the bump steer all over
and install the necessary spacers. |
|
| |
|
| |
Please Call Us at (770) 457-ALFA(2532) or (800)
552-ALFA for a
full inventory of available Alfa Romeo racing parts.
Thanks!
